OpenText: How to launch an Intelligent Capture module in setup mode from the command line
Description:
It some situations, it may be necessary to luanch an Intelligent Capture module
in setup mode from the command line. For
example, both Designer and Intelligent Capture Adminstrator are not acessible
on the system where you need to run the setup.
Resolution:
A. For a QuickModuleHost.exe module, run the command line with these
parameters:
-modulename:[ModuleName] -login:[username],[password]@[IAServerName] -setup:[ProcessID],[StepName]
-modulename:[ModuleName] -login:[username],[password]@[IAServerName] -setup:[ProcessID],[StepName]
Example for ScanPlus:
C:\Program Files (x86)\InputAccel\Client\binnt\x64>quickmodulehost.exe
-modulename:Emc.InputAccel.Scan -login:*@localhost -setup:187300,ScanPlus
B. For an .exe module, run the command line with these
parmeters for an .exe module:
-login:[username],[password]@[IAServerName] -setup:[ProcessID],[StepName]
-login:[username],[password]@[IAServerName] -setup:[ProcessID],[StepName]
Example for Image Processor:
C:\Users\rdsadmin>cpimgpro.exe -login:*@localhost
-setup:187300,ImageProcessor
TIP

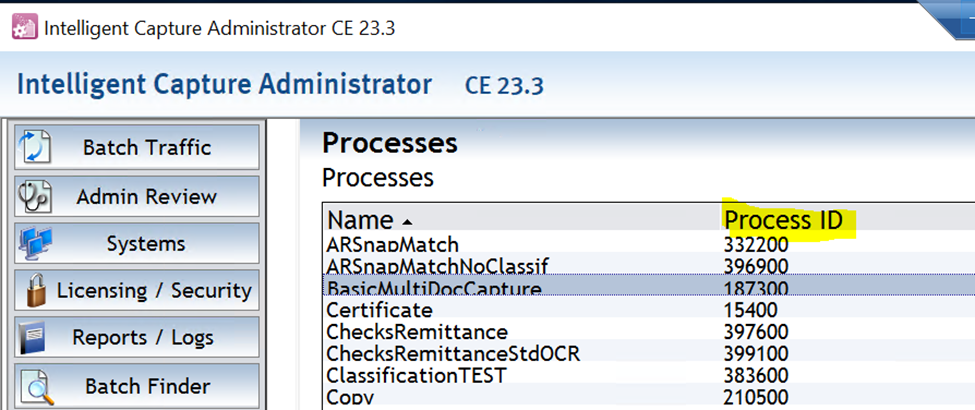

The Process ID can be found
in Administrator under Systems > Processes
TIP

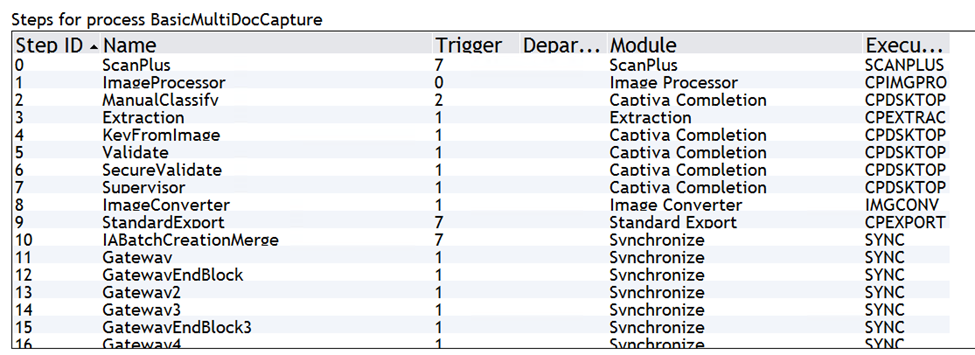

The StepName for the process is shown under the “Name” column
in Administrator > Systems >
TIP

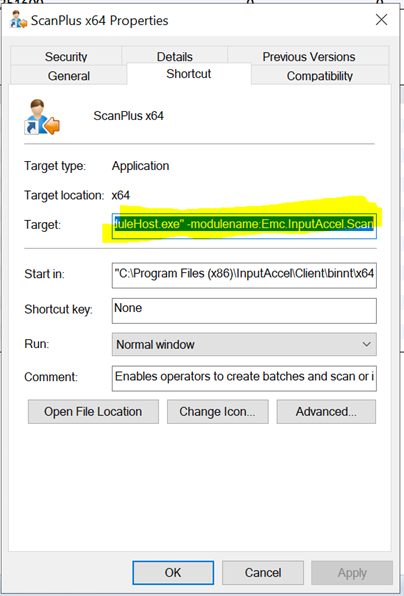

Check the module properties
for the name of the .exe and modulename.
